AI MECHATEC

Ink-Jet
+ Solution

(+Repeatability)
(+Inspection & Repair)
“Low cost Mass production process”

Mass Production

AIMECHATEC Ink-Jet Solution

Mass Production Platform Technology

Printing
  • DPA/DPN
  • Original Mixing Control
  • Thickness Control
  • Temperature Control
Apply
  • Curved/Free Form
  • Electrostatic jetting mechanism
  • High Viscocity/Wide Range
  • Forming/Stacking
Function
  • Circulation mechanism
  • Inspection mechanism
  • Repair mechanism
  • Process Know-how
Turnkey Solution
  • Vacuum Dry
  • Dry/Bake/Sintering
  • UV/Laser
  • Film Handling

Ink-Jet application

Ink-Jet printing technology has been used to create and develop new application, accompanying changes in style.
We provide total solution with our Ink-Jet printing technology to develop new mass-production style for low-cost’s requirements and needs.

  1. Display Solution

    Quantum Dot Display
    QD-OLED/QLED/
    QD-Micro LED/QNED/QDEL
    OLED
    LCD
    Micro Display
    OLED/LCOS/HPTS
    Other
    LCD Shutter/Antenna
  2. Manufacturing Process

    Array/CF process
    RGB/QDCF
    Cell/Encapsulation process

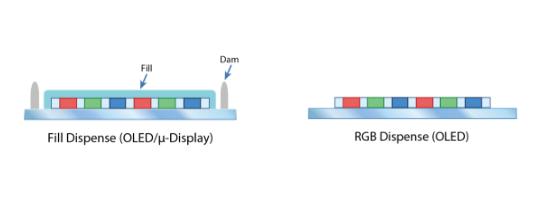

    TFE/DAM/FILL/ODF
    Module process

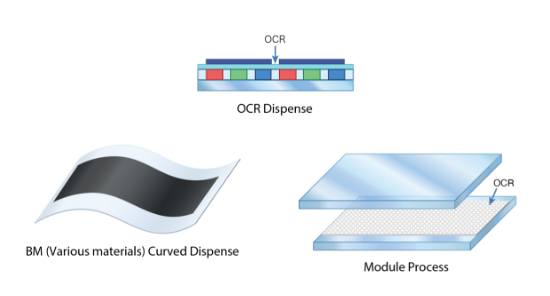

    BM/OCA/OCR/
    Camera Hole
  3. Material

    Quantum Dot
    HIL/HTL/EML/ETL
    Fill(UV/Heat Cure)
    LC (IPS/PSVA/BP)
    Organic material (Acrylic/Epoxy/Silicon)
    Acrylic/Epoxy/Silicon
  1. Semiconductor Solution

    Circuit formation Ag/Cu nano ink
    System in Package

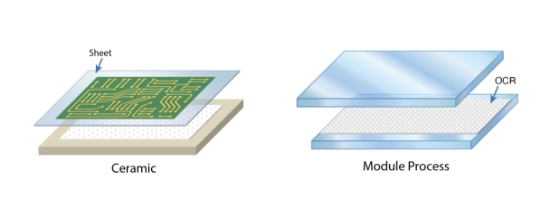

    Ceramic Package
    Antenna in Package
    Micro LED/Mini LED
  2. Manufacturing Process

    Metal pattern formation
    Insulation pattern formation
    Flattening film formation
    IR film formation
    Through hole print
    Micro dot print
    Silk print
  3. Material

    Ag/Cu Nano Ink

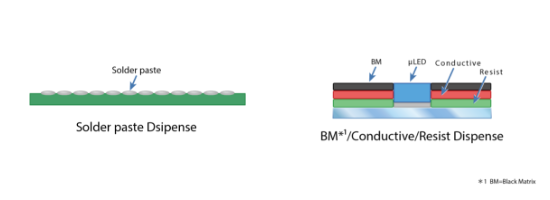

    Solder Paste
    Resist
    Primer ink
    Conductive material
    Insulating material
  1. New Solution

    Smart Window
    Light Control Glass
    Medical Equipment

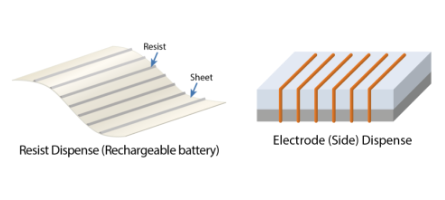

    Rechargeable battery
    Nanoimprint
  2. Manufacturing Process

    ODF(Hi-Aspect)
    Thin/Thick formation
    Fixed-quantity dispense
    Micro dot dispense
  3. Material

    LC(with Pigment)
    Liquid Medicine
    Resin
    Electrode marerial
    Separate material
AImechatec IJP Surface
AImechatec IJ Dot
